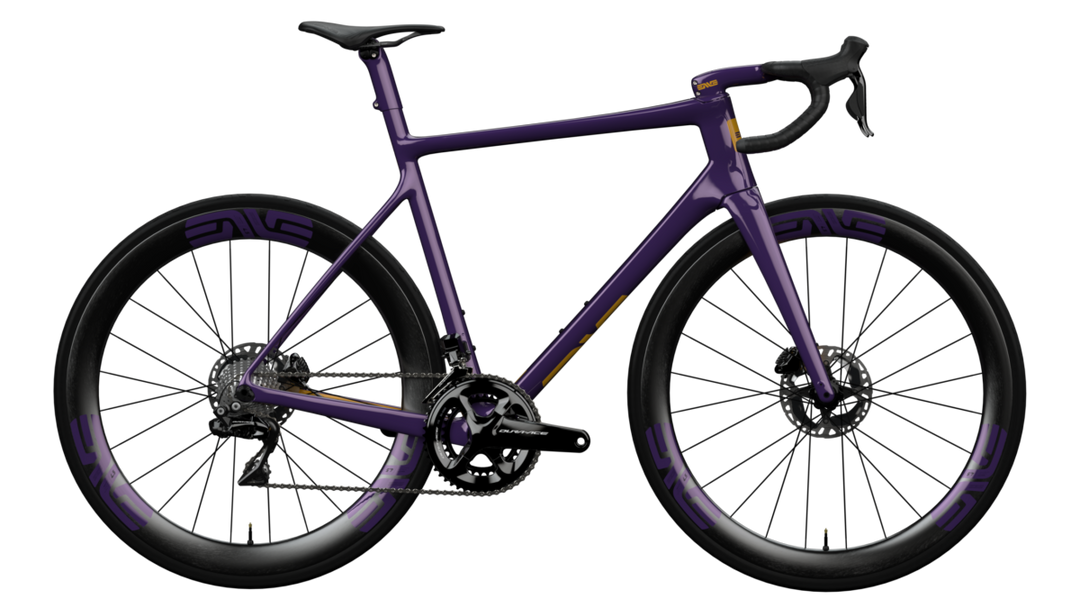

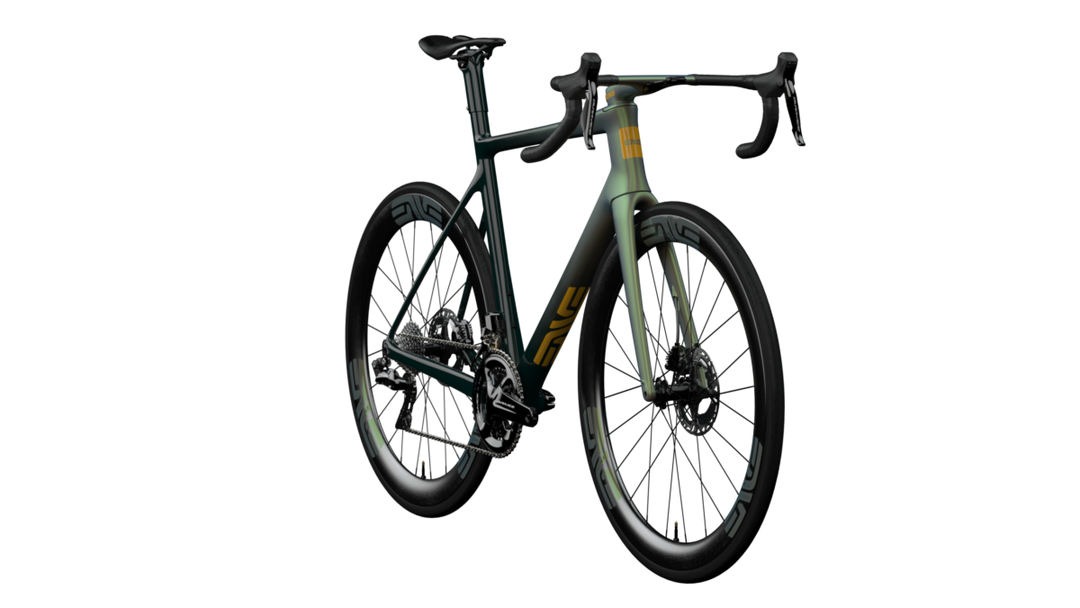

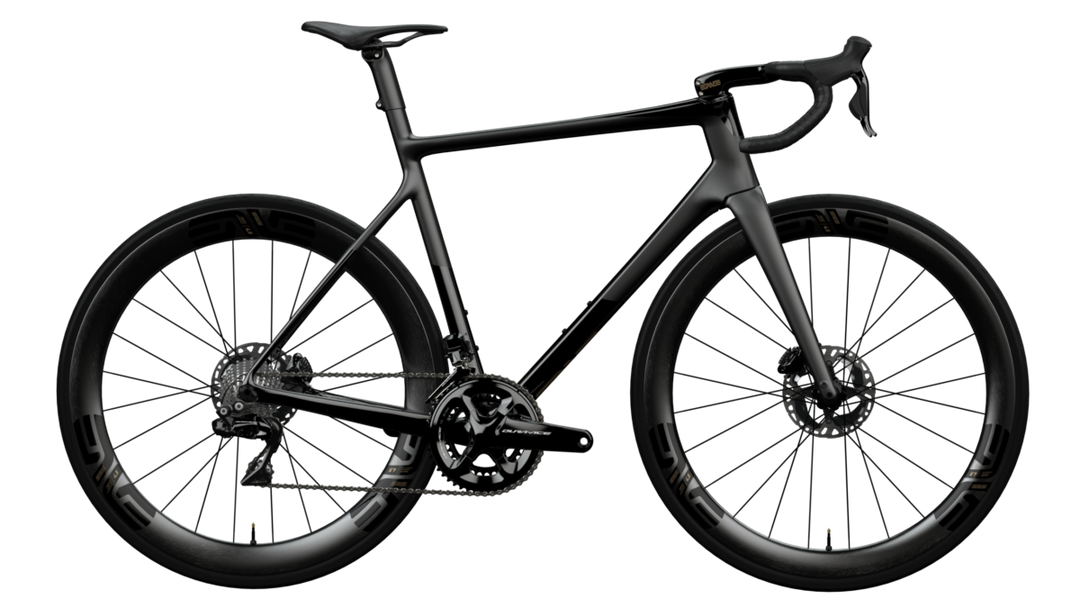

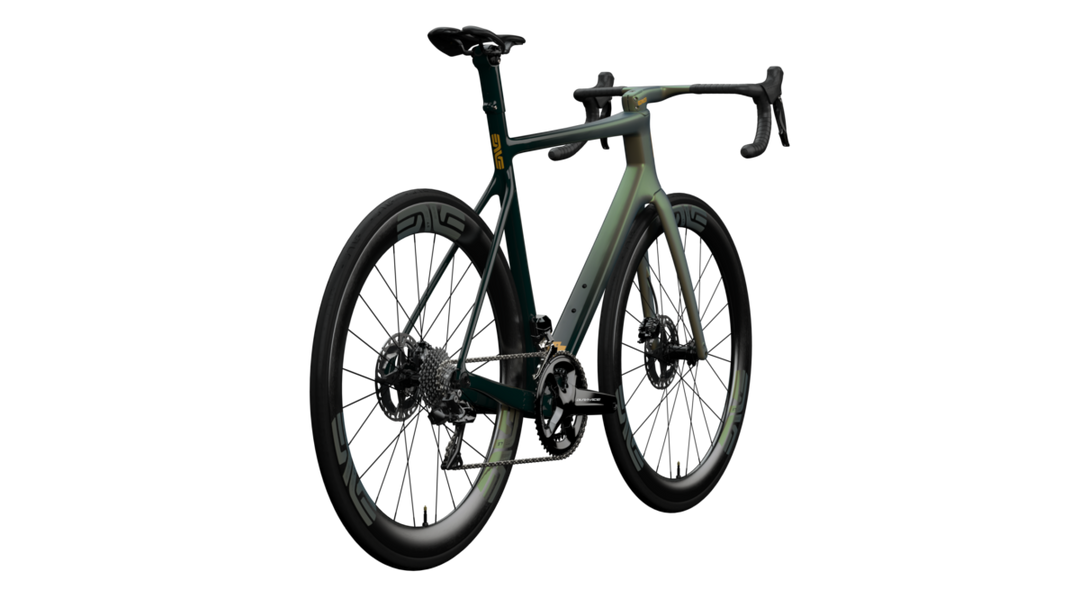

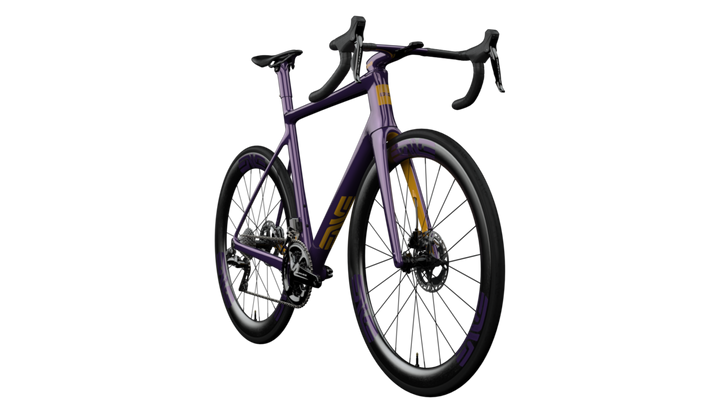

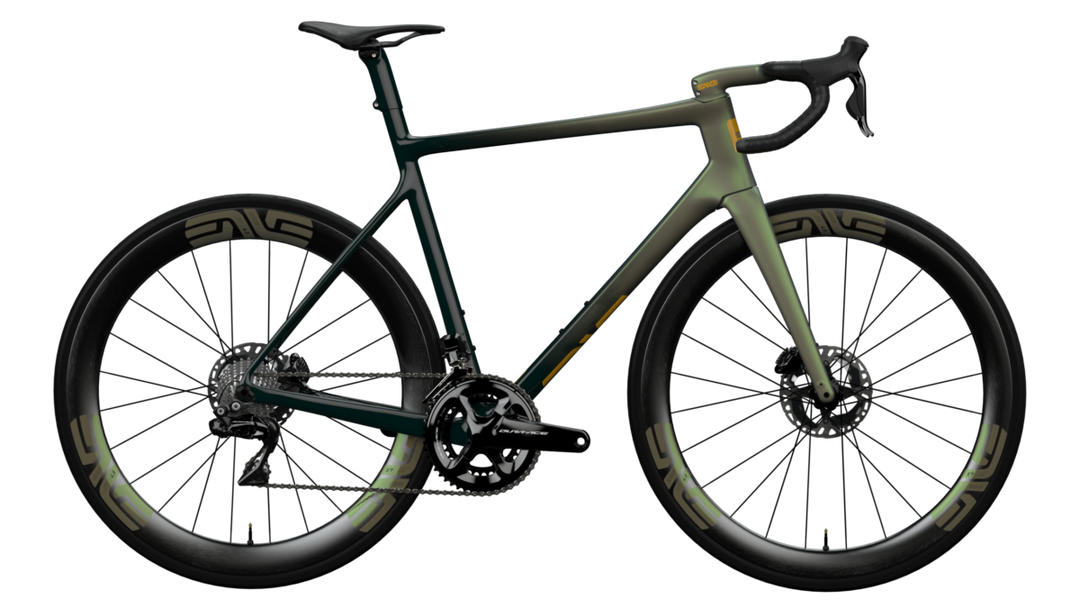

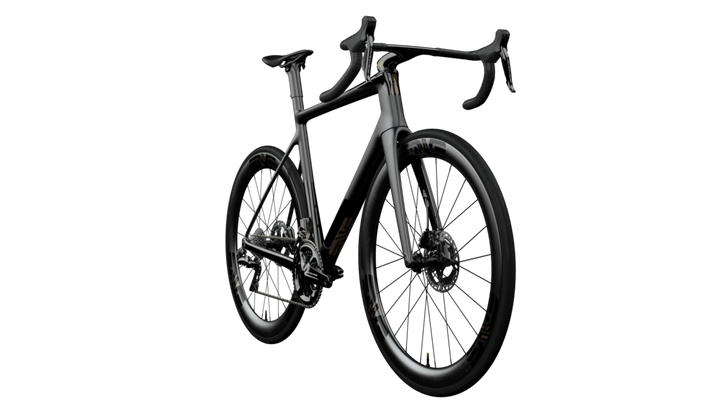

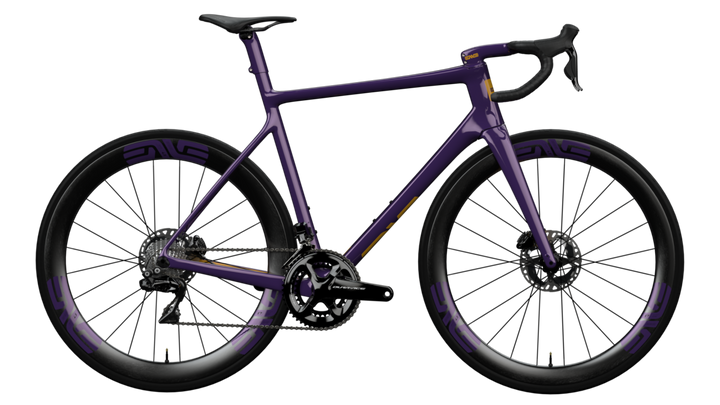

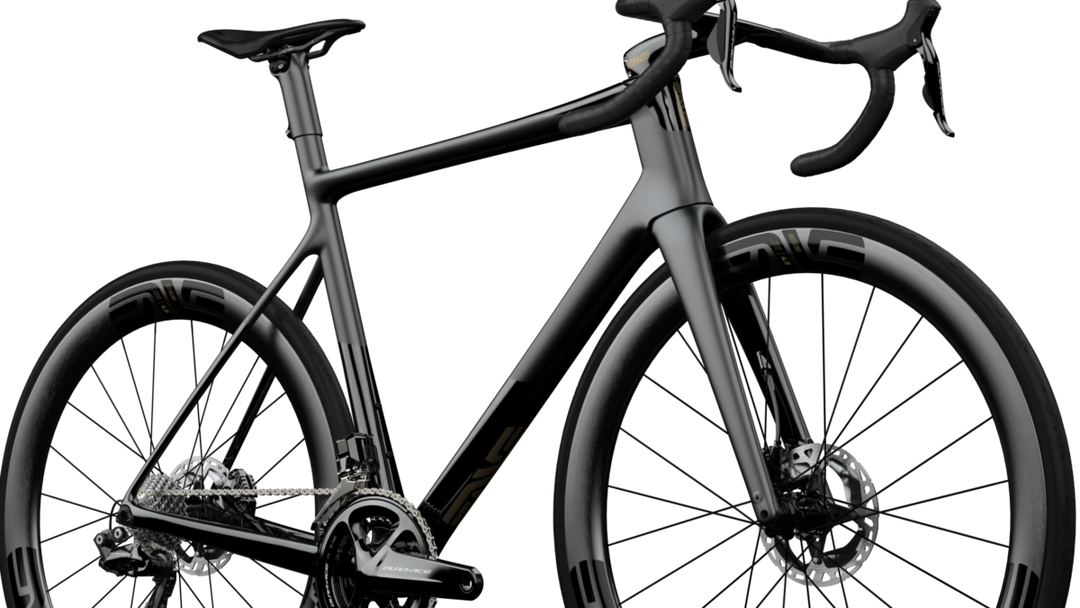

High tech meets high touch with the ENVE Custom Road bike. From geometry to paint, to wheels and components, each ENVE Custom is tailored to your specific wants and needs.

Put down your deposit today to get in the queue for a modern road bike that’s uniquely yours, and uniquely ENVE. After you reserve your spot in our production lineup, you can take your time customizing everything from geometry to paint color, and craft one-of-a-kind bike tailored to your needs.

An ENVE representative will work with you to finalize the details of your dream build and provide an estimated delivery date.

Custom Road Chassis starting at €8000 and complete builds starting at €10,900.


Put down your deposit today to get in the queue for a modern road bike that’s uniquely yours, and uniquely ENVE. After you reserve your spot in our production lineup, you can take your time customizing everything from geometry to paint color, and craft one-of-a-kind bike tailored to your needs.

An ENVE representative will work with you to finalize the details of your dream build and provide an estimated delivery date.

Custom Road Chassis starting at $8000 and complete builds starting at $10,900.

CHASSIS SRAM RED eTap AXS SES SRAM FORCE eTap AXS SES Shimano
Dura-Ace Di2
SES
Shimano
Ultegra Di2
SES
Frame/Fork Custom Road Custom Road Custom Road Custom Road Custom Road
Wheelset SES SES SES SES
Handlebar SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
Stem SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
SES AR One-Piece Bar and Stem
Custom Size
Seatpost ENVE Integrated Seat Mast Topper ENVE Integrated Seat Mast Topper ENVE Integrated Seat Mast Topper ENVE Integrated Seat Mast Topper ENVE Integrated Seat Mast Topper
Saddle SLR Boost Carbon, 130mm or 145mm SLR Boost Carbon, 130mm or 145mm SLR Boost Carbon, 130mm or 145mm SLR Boost Carbon, 130mm or 145mm SLR Boost Carbon, 130mm or 145mm
Tire SES Road Tire
(25, 27, 29, 31)
SES Road Tire
(25, 27, 29, 31)
SES Road Tire
(25, 27, 29, 31)
SES Road Tire
(25, 27, 29, 31)
Tire Sealant Orange Seal, 4 Oz. Orange Seal, 4 Oz. Orange Seal, 4 Oz. Orange Seal, 4 Oz.
Handlebar Tape ENVE Black/Gray/White ENVE Black/Gray/White ENVE Black/Gray/White ENVE Black/Gray/White ENVE Black/Gray/White
Computer Mount ENVE x K-Edge Aero ENVE x K-Edge Aero ENVE x K-Edge Aero ENVE x K-Edge Aero ENVE x K-Edge Aero
Bottle Cages ENVE Carbon Road Cage ENVE Carbon Road Cage ENVE Carbon Road Cage ENVE Carbon Road Cage ENVE Carbon Road Cage
Rotor Lockring, CL F/R ENVE, CL Inner ENVE, CL Inner ENVE, CL Inner ENVE, CL Inner
Shifter/Brake L/R Sram Red AXS Sram Force AXS Shimano
Dura-Ace Di2
Shimano
Ultegra Di2
Front Derailleur Sram Red AXS Sram Force AXS Shimano
Dura-Ace Di2
Shimano
Ultegra Di2
Rear Derailleur Sram Red AXS Sram Force AXS Shimano
Dura-Ace Di2
Shimano
Ultegra Di2
Brake Rotor F/R Sram Centerline 160 CL Sram Paceline 160 CL Shimano Centerlock Ice Tech RT-CL900 160 Shimano Centerlock Ice Tech RT-CL800 160
Crank Sram Red 46/33t, 48/35t, 50/37t
165mm, 170mm, 172.5mm, 175mm, 177.5mm
Sram Force 46/33t, 48/35t
165mm, 170mm, 172.5mm, 175mm
Shimano Dura-Ace 50/34t, 52/36t, 53/39t
165mm, 170mm, 172.5mm, 175mm, 177.5mm
Shimano Ultegra 46/36t, 50/34t, 52/36t, 53/39t
165mm, 170mm, 172.5mm, 175mm
Bottom Bracket 386EVO 386EVO 386EVO 386EVO
Cassette Sram Red, 10-26t, 10-28t, 10-33t Sram Force, 10-26t, 10-28t, 10-33t, 10-36t Shimano Dura-Ace, 11-25t, 11-28t, 11-30t, 12-25t, 12-28t Shimano Ultegra, 11-25t, 11-28t, 11-30t, 11-32t, 12-25t
Chain Sram Red Sram Force Shimano Dura-Ace Shimano Ultegra
Battery Charger Sram AXS Charger Sram AXS Charger Shimano Di2 Charger Shimano Di2 Charger
MSRP $ USD $8,000 $14,498 $13,528 $15,106 $13,414

Frame Material ENVE M.O.D Carbon
Fork Material ENVE M.O.D Carbon
Target Application Road Race/Performance or Endurance
Sizes (cm) Custom (∼47cm, ∼50cm, ∼52cm, ∼54cm, ∼56cm, ∼58cm, ∼60cm; +/- 1cm)
Fork Rake 55, 51, 47, 43, 39 (determined during fit)
Frame Weight 850g +/- 2% (Size 56, Unpainted)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Integrated Seat Mast Topper
BB Type 386EVO
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 25c
Optimal Tire Size 27c-32c
Maximum Listed Tire Clearance 35c
Frame Routing Internal

Race road geometry

  • Prioritizes agility and responsiveness
  • Shorter wheelbase
  • Geometry tuned for labeled 25-31mm tires
  • Max tire clearance – 35mm (labeled)
  • Rider archetype: Road/criterium racer, aggressive and responsive, out of the saddle

all road geometry

  • Prioritizes stability and control
  • Longer wheelbase
  • Geometry tuned for labeled 29-35mm tires
  • Max tire clearance – 35mm (labeled)
  • Rider archetype: Endurance, mixed-surface racer, smooth and flowing, in the saddle.

Handlebars ENVE SES AR One-Piece Bar and Stem – Custom Size
Stem ENVE SES AR One-Piece Bar and Stem – Custom Size
Seat Posts Integrated Seat Mast Topper

From geometry to paint, to wheels and components, each ENVE Custom is tailored to your specific wants and needs.

Our goal is to deliver you a bike that fits – perfectly. To make this possible, the Custom Road is constructed using a molding process that allows us to create a custom bike for virtually any fit. The result is a handcrafted, US-made bike, built specifically for you.

The ENVE Custom Road is available with two unique personalities–Race and All Road. While identical in appearance, each has been tuned for a range of specific tire sizes and rider styles.

“I wanted to let you know that I did receive my new Custom Road yesterday and I am beyond pleased with the final product. Your process is absolutely dialed in, because this bike nailed the fit, perfectly. Amazing work!

Hats off! Thank you guys for a great experience!"

— ENVE CUSTOM ROAD OWNER

Rider Specific Fit and Tune

At the foundation of performance is bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry and space age materials in the world won't save your ride. You need an optimized fit and tuned geometry to give you the confidence and comfort needed to reach your performance potential.

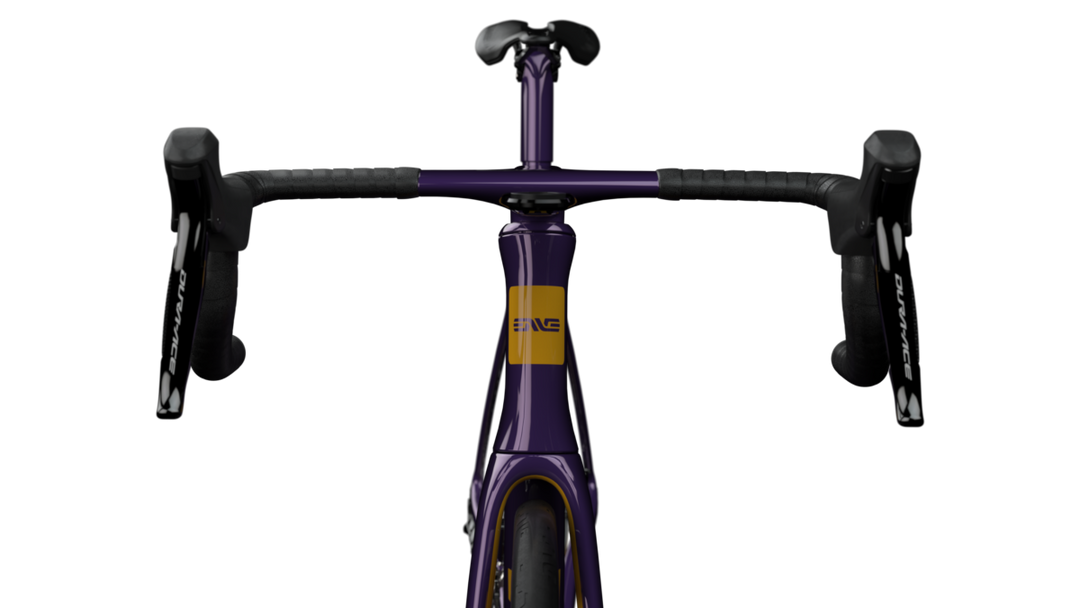

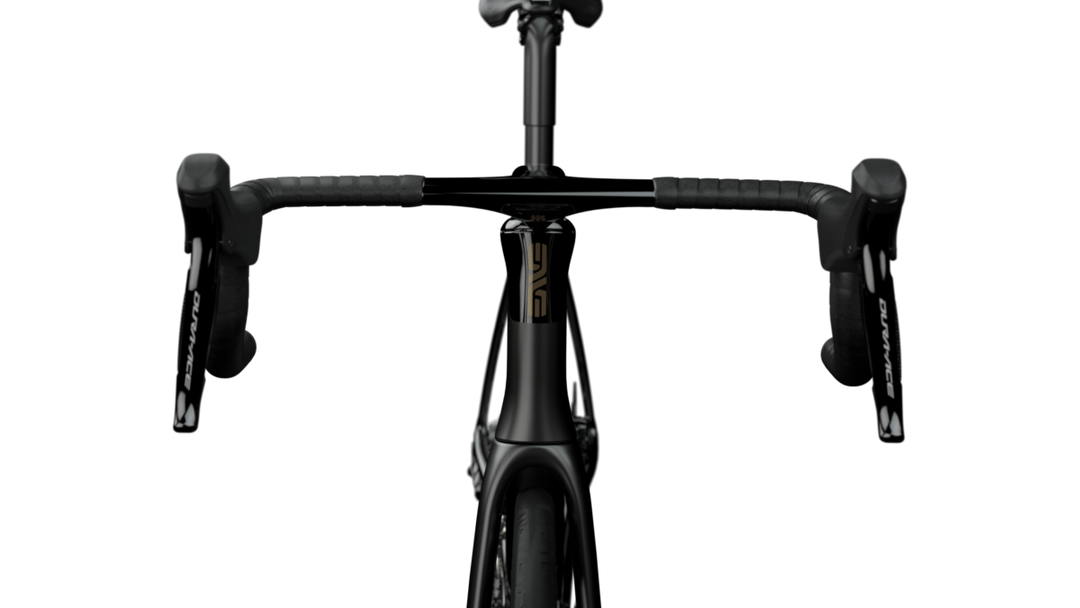

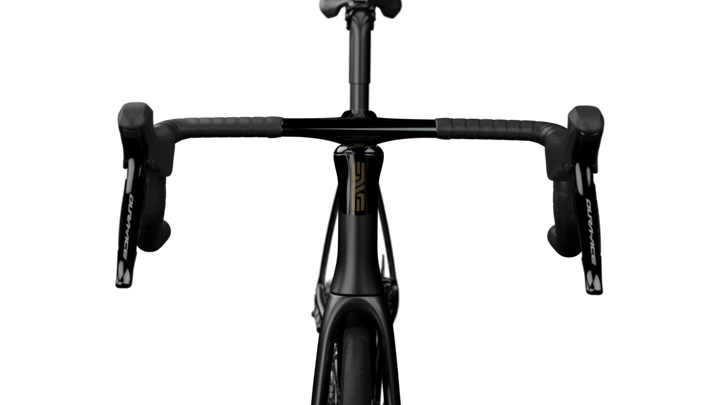

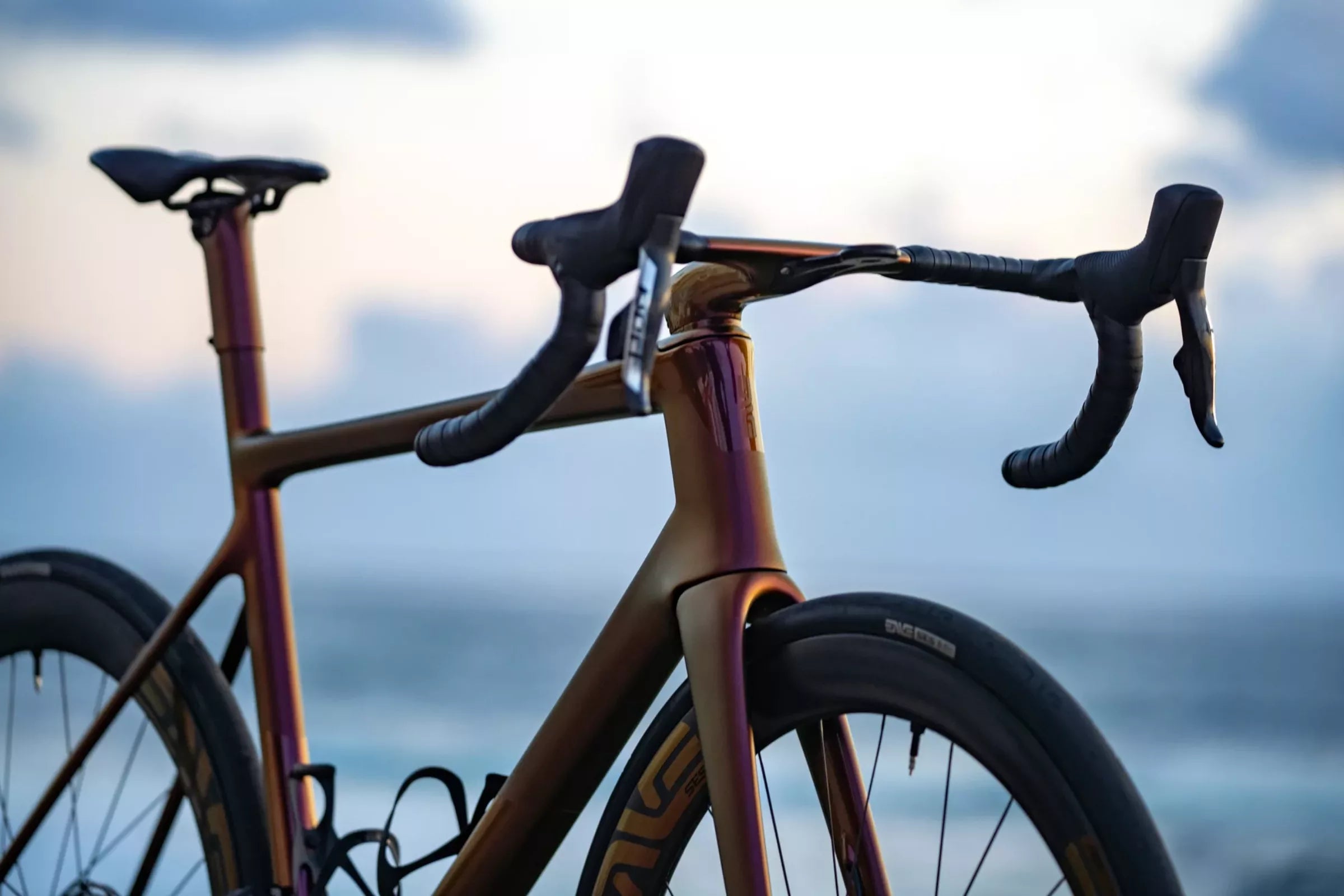

Integrated for Speed

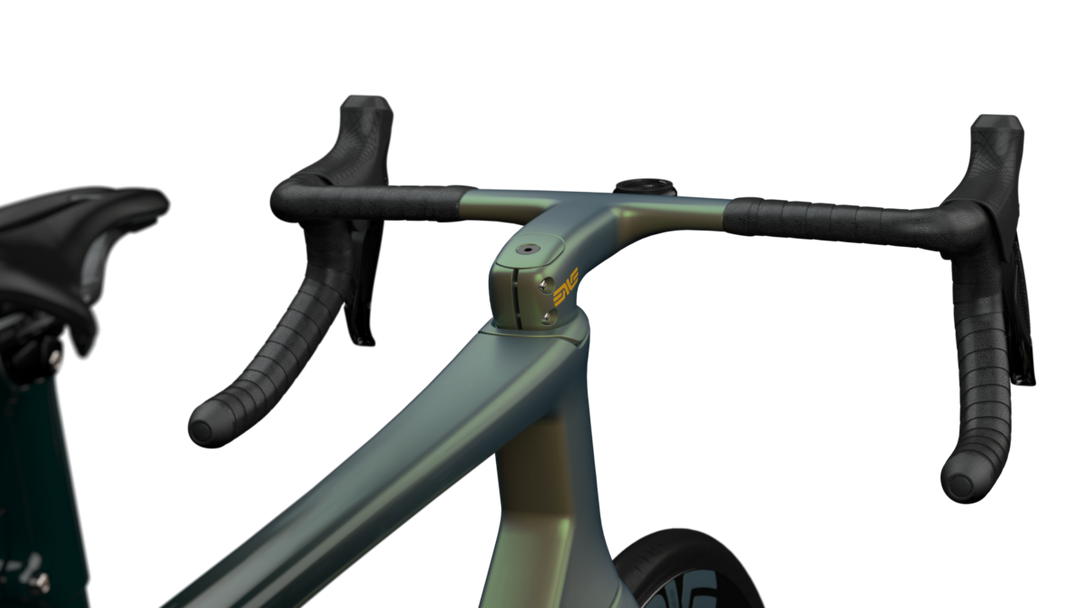

The IN-Route front-end design routes wires and hoses through the bar, stem, and headset where they're secured using ENVE's anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the SES AR One-Piece Bar to maximize the aerodynamic benefits of the streamlined design.

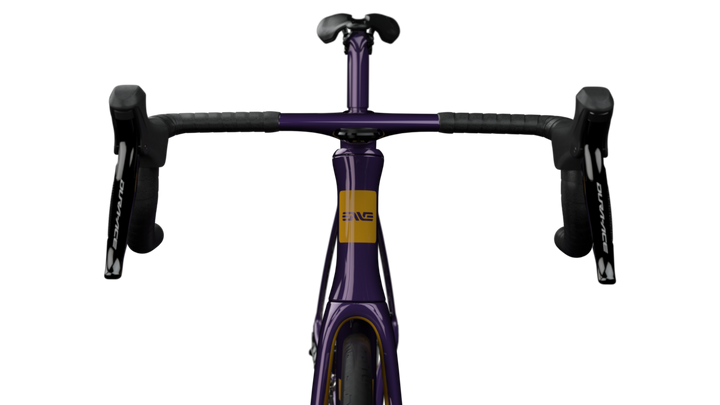

Aerodynamics Front and Center

Tapping into our experience developing rim shapes in the world's fastest frames, the Custom Road delivers leading aerodynamic efficiency and achieves our design goals for strength, stiffness, and versatility.

Chris King Aeroset™ Headset

In a collaboration with Chris King Precision Components, we developed the Aeroset, an all new internally routed headset designed to deliver precise handling and a clean integrated aesthetic.

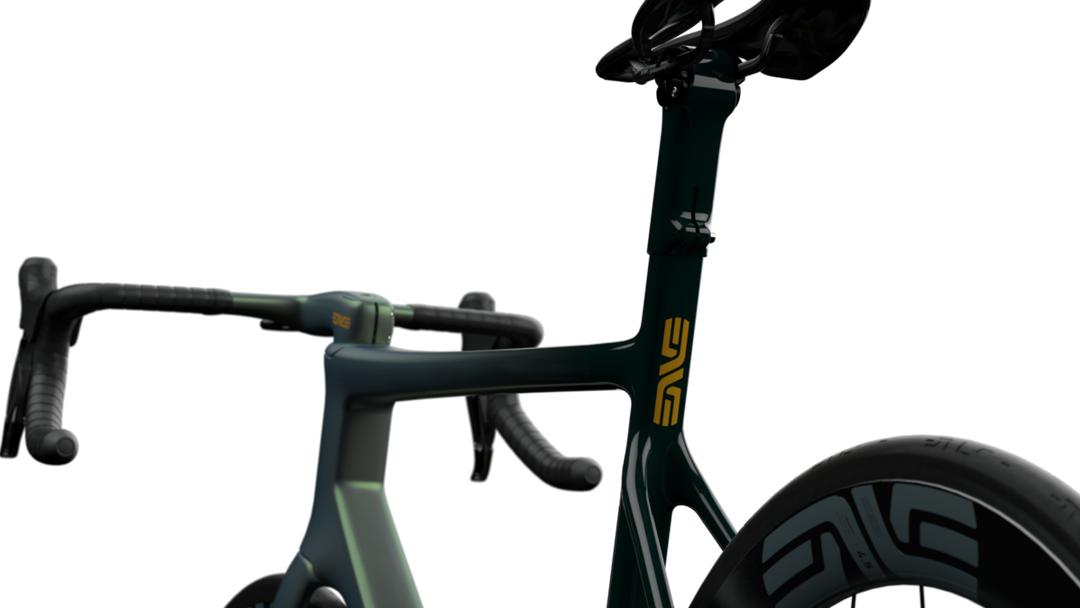

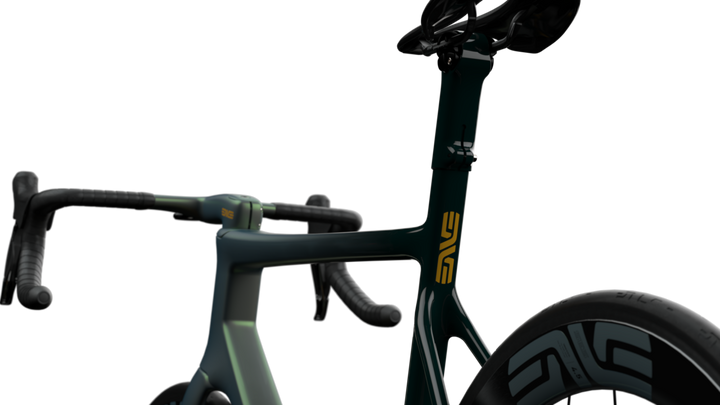

Integrated Seatmast and Topper

Allows for a reduction in weight and a more compliant ride. In addition, the seat mast topper uses ENVE's tried and proven clamp mechanism and offers 35mm of height adjustability should your fit needs change.

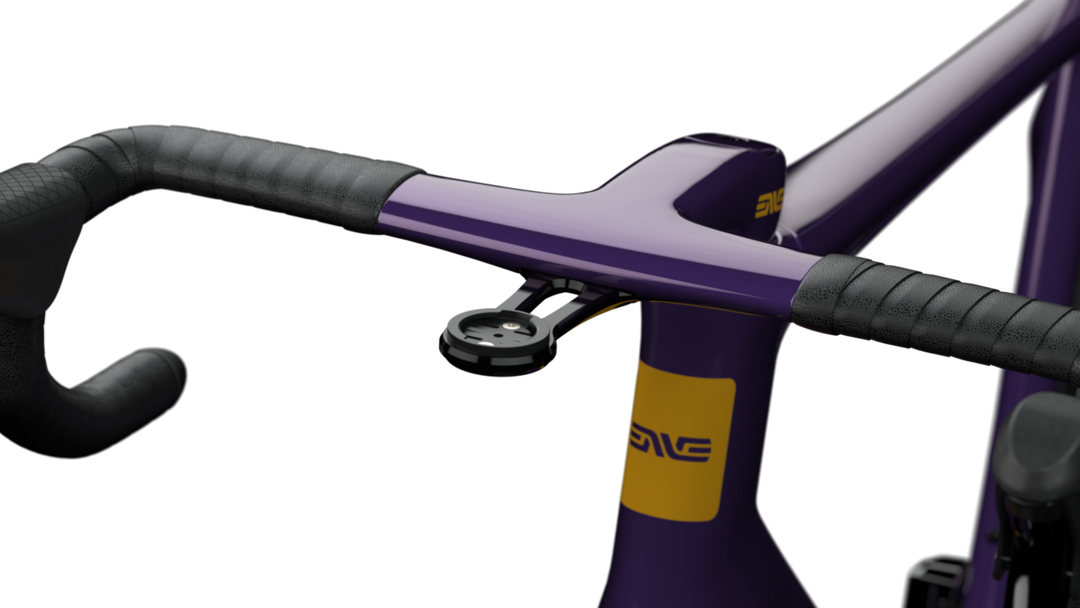

ENVE x K-EDGE COMBO MOUNT

In collaboration with K-Edge the Custom Road’s computer mount integrates cleanly with the SES AR One-Piece Bar and ensures secure retention of your cycling computer + light or camera.

ENVE X SCICON AEROCOMFORT 3.0 TSA TRAVEL CASE

Each chassis, rolling chassis, and complete bike is delivered in a custom ENVE x Scicon Aerocomport 3.0 TSA travel case that allows for a five-minute pack job while ensuring your critical adjustments remain untouched.
