the new standard for ride quality and durability
The culmination of a 4-year collaborative R&D project with professional athletes and teams, on top of of more than 15-years of groundbreaking mount wheel designs, has delivered a new benchmark for mountain bike wheel performance.

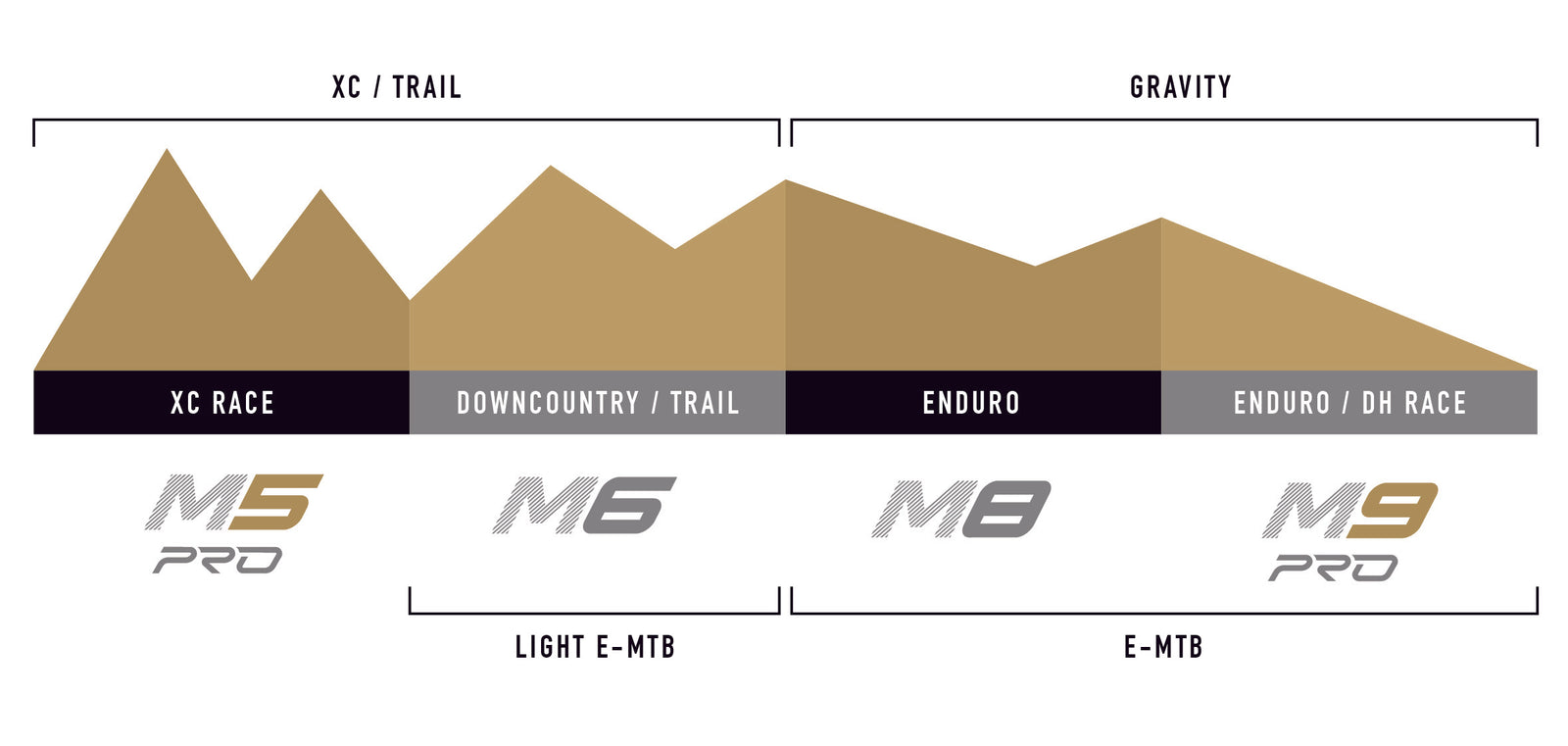

Meet the line up

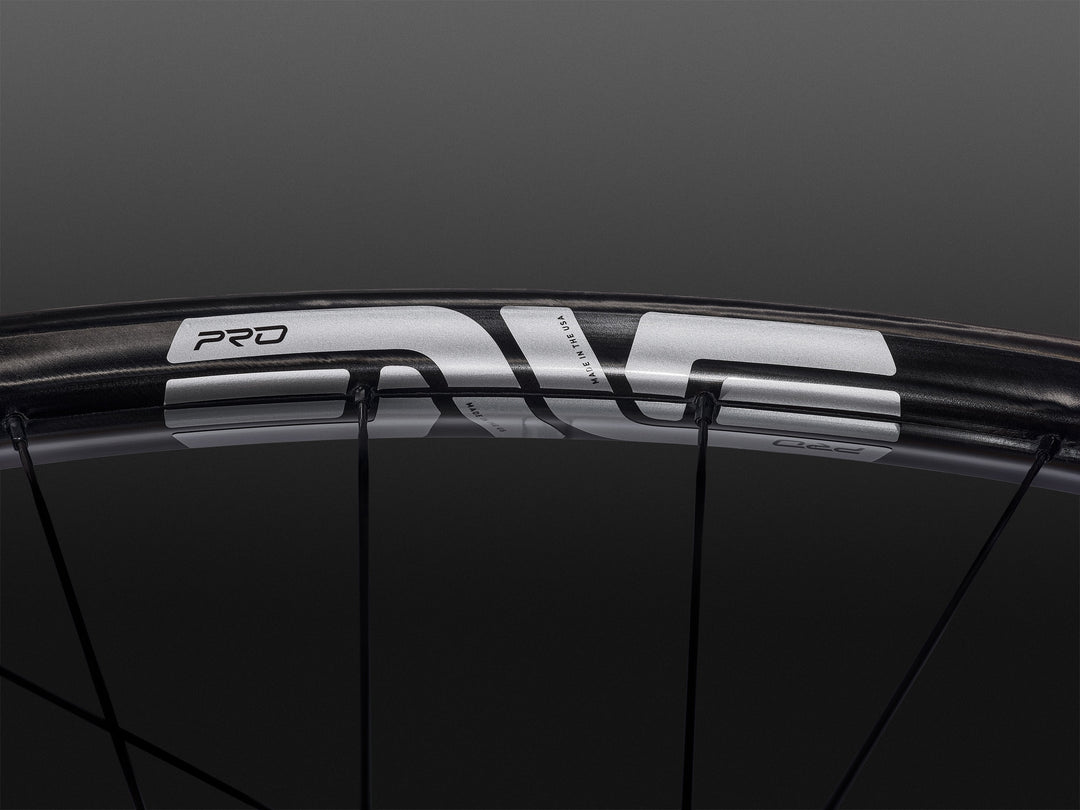

M Series "Pro"
New Shapes, new features

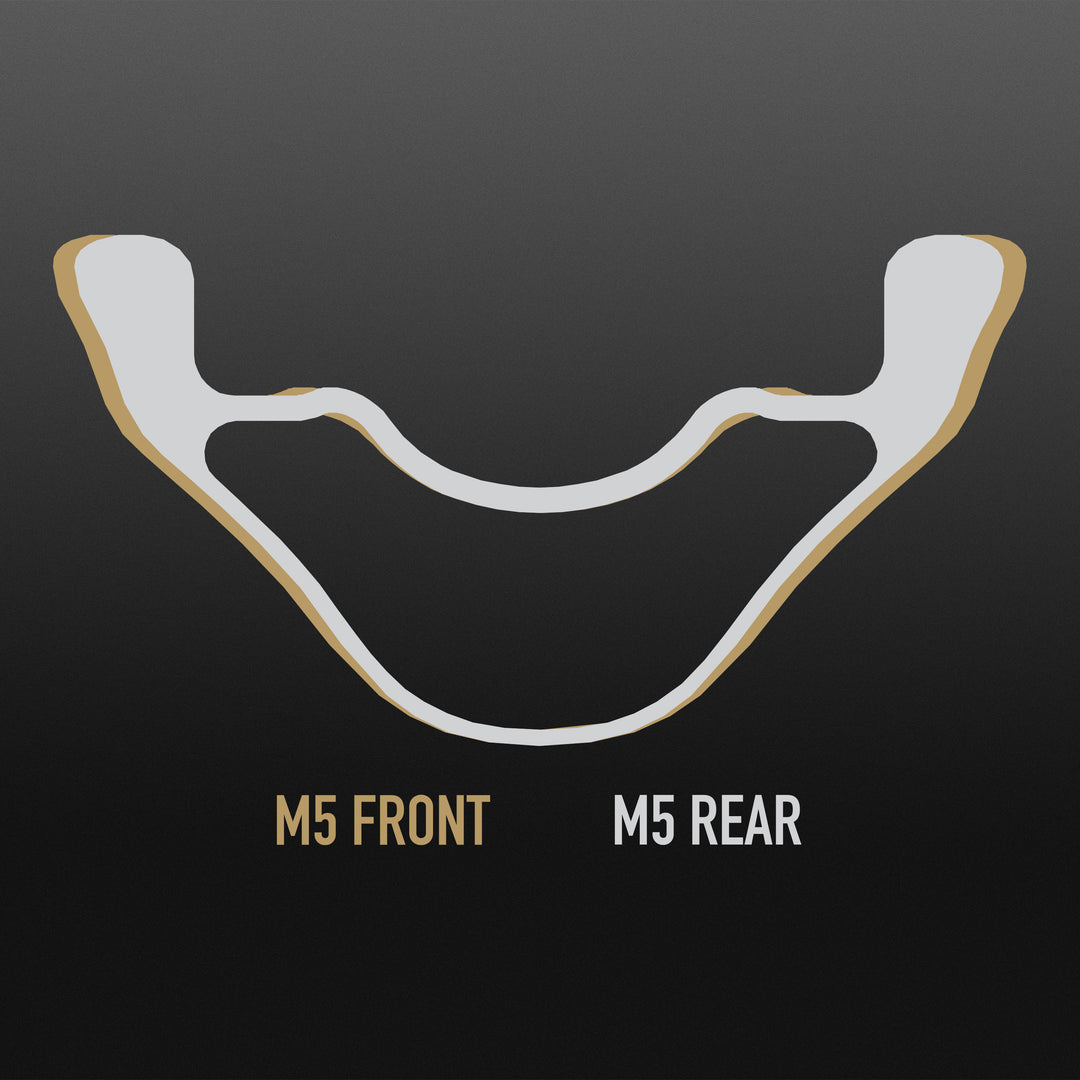

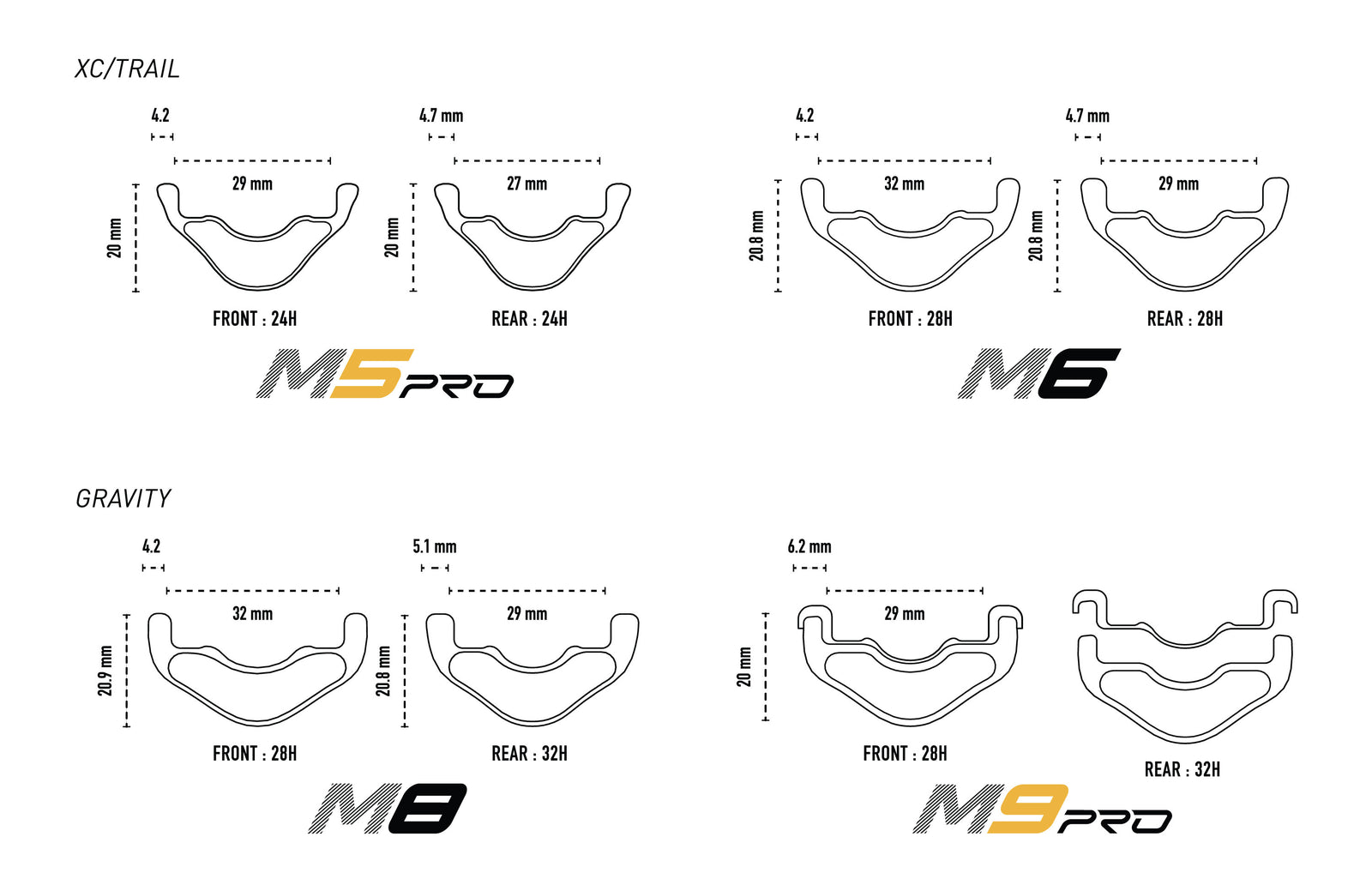

new rim shape
- Wider Front Wheel- Increases tire volume and support, allowing for lower tire pressure and more traction
- Narrower Rear Wheel- Reduces tire volume and support for more forgiveness, and improved rolling resistance

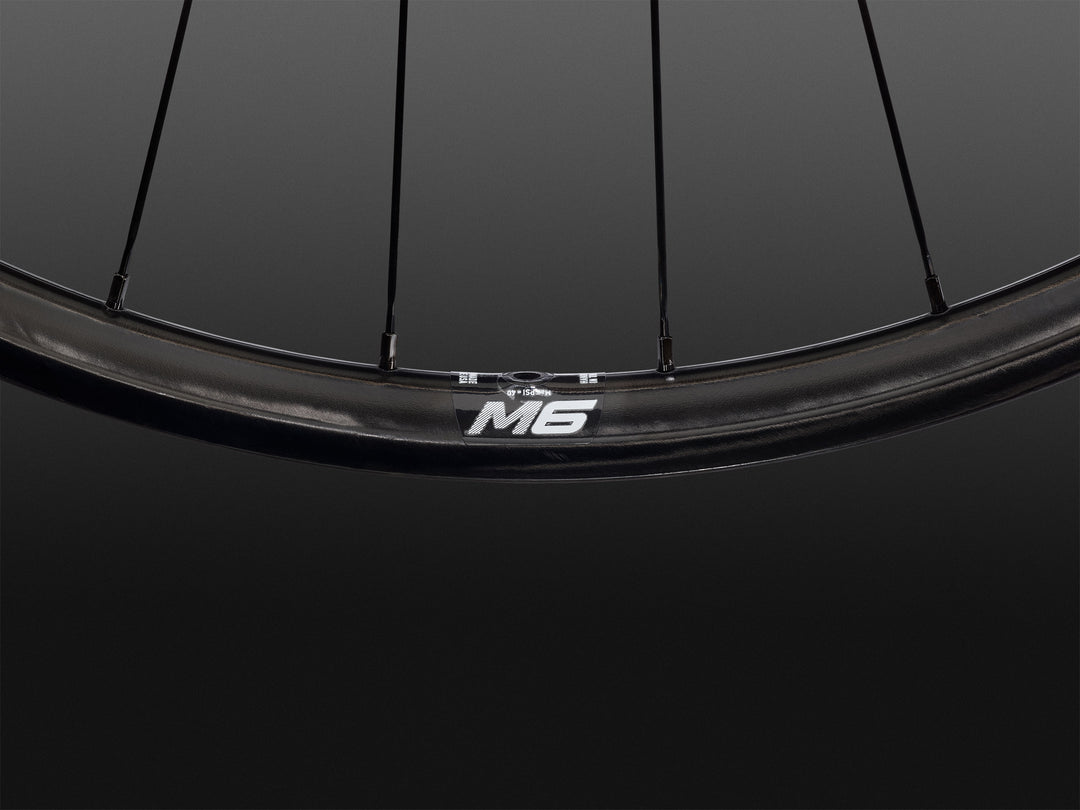

external spoke nipples
All M Series rims feature ENVE's patented Molded Spoke Hole technology (US Patent # 8,313,155 B2), but now with external locking nipples. Additionally, each nipple is equipped with a nyloc insert to keep spokes tensioned and wheels true.
Rim Depth and sidewalls
- Depth-Shallow 20mm depth for optimal balance of compliance, weight savings, and reliability
- Sidewalls-The concavity of the sidewalls aids in striking a balance between durability and compliance

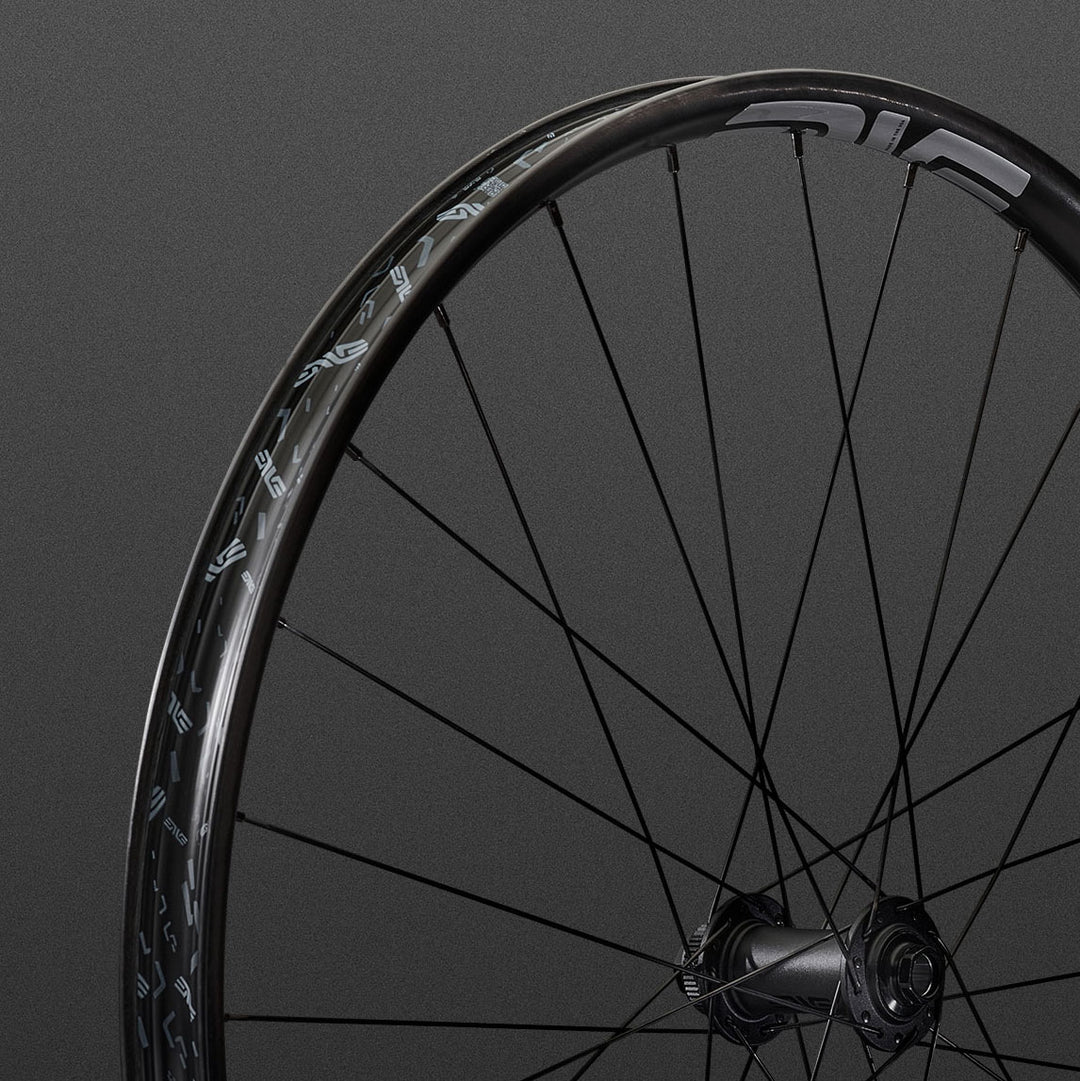

rim leading edge
- Front-leading edge is narrower to save weight, so that more material can be deployed to the rear wheel where damage is more likely to occur
- Rear-leading edge is wider to enhance pinch-flat protection and impact toughness
real-world tough
basically, send it.

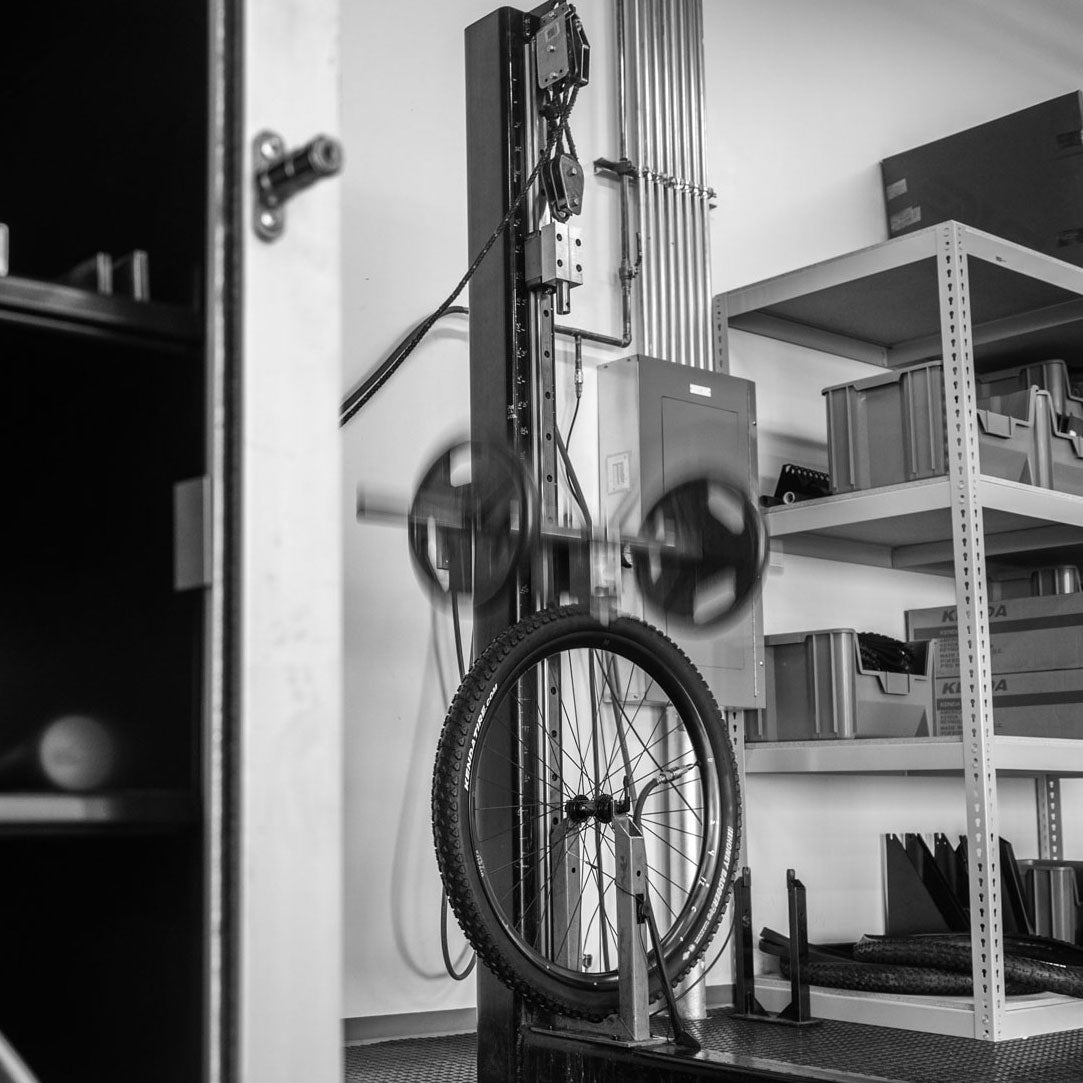

More than 18 years of impact testing and real world riding have provided us with a baseline and the data for improvements. With the culmination of 322 prototypes and 1,270 rims over a four year R&D project, its time to "send it."
ENVE pioneered two game-changing technologies with the objective of eliminating the dreaded pinch-flat forever. Technologies such as Protective Rim Strip and Wide Hookless Bead distribute impact energy and provide enhanced protection to the tire and rim.

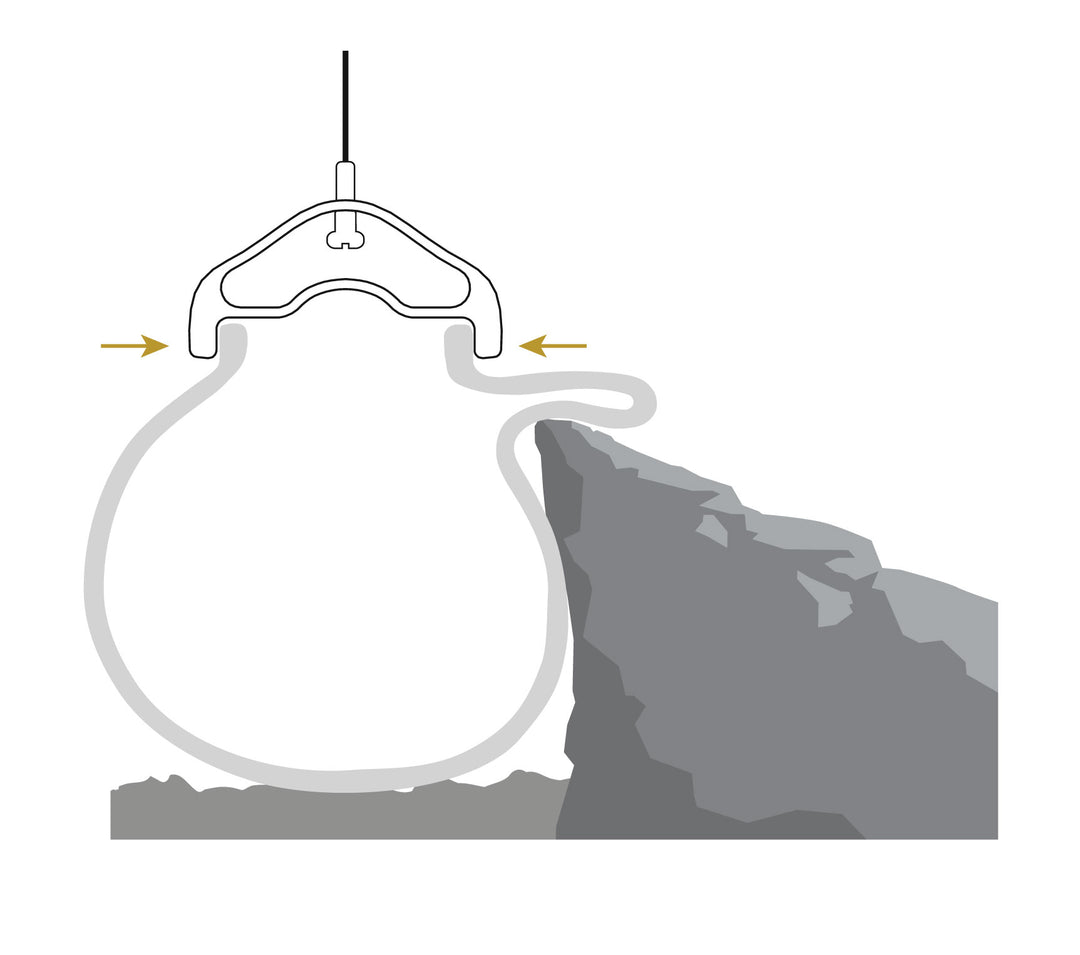

Wide Hookless Bead
Featured on the M5, M6, M8
- Blunt leading rim edge dissipates impact forces across a broader surface area and reduces the likelihood of pinch-flats by 50% in lab tests
- On the trail, riders report having gone seasons with no pinch-flats since the introduction of this tech to their rides
- Gen. 5 M Series' more compliant design further aids in pinch-flat reduction

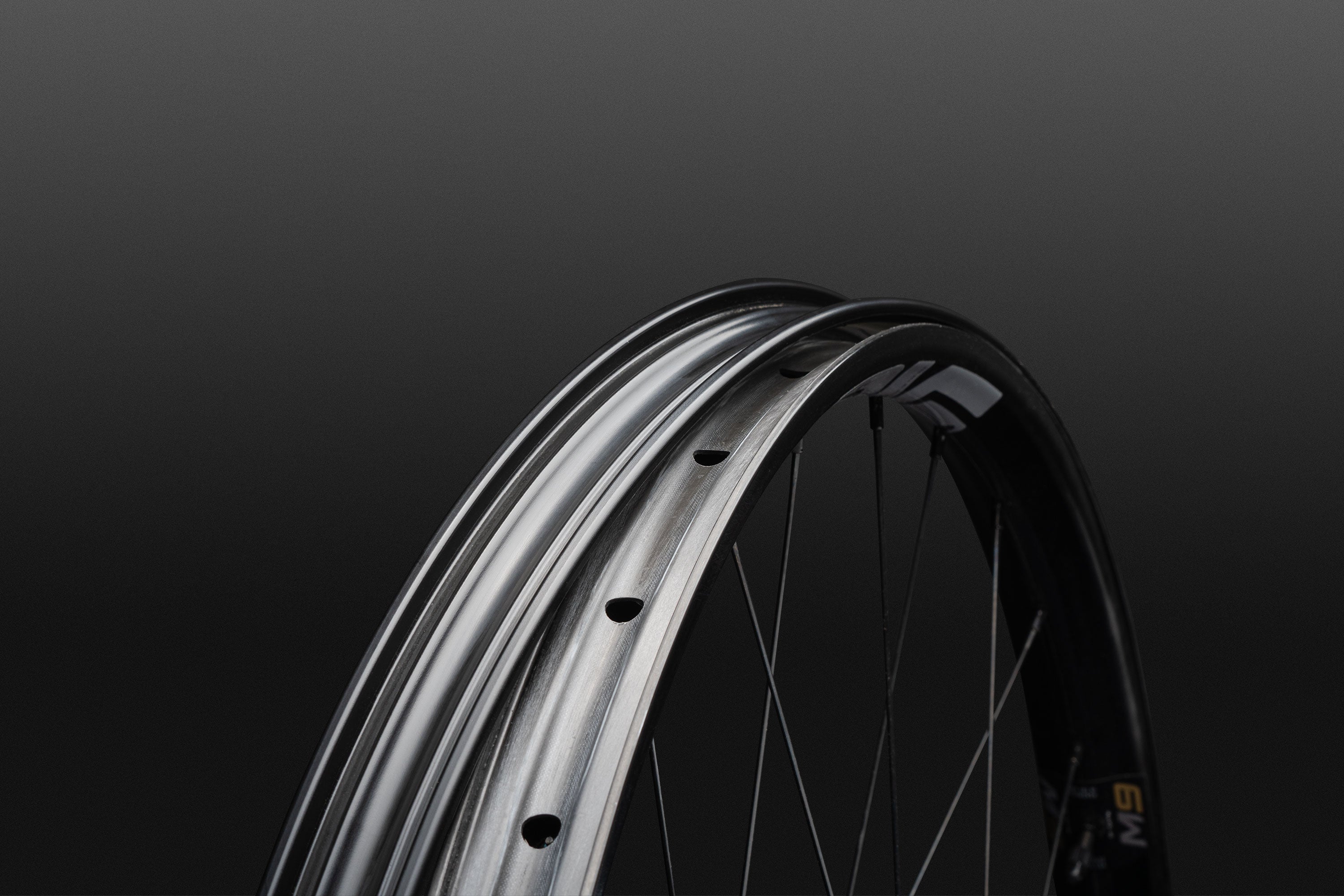

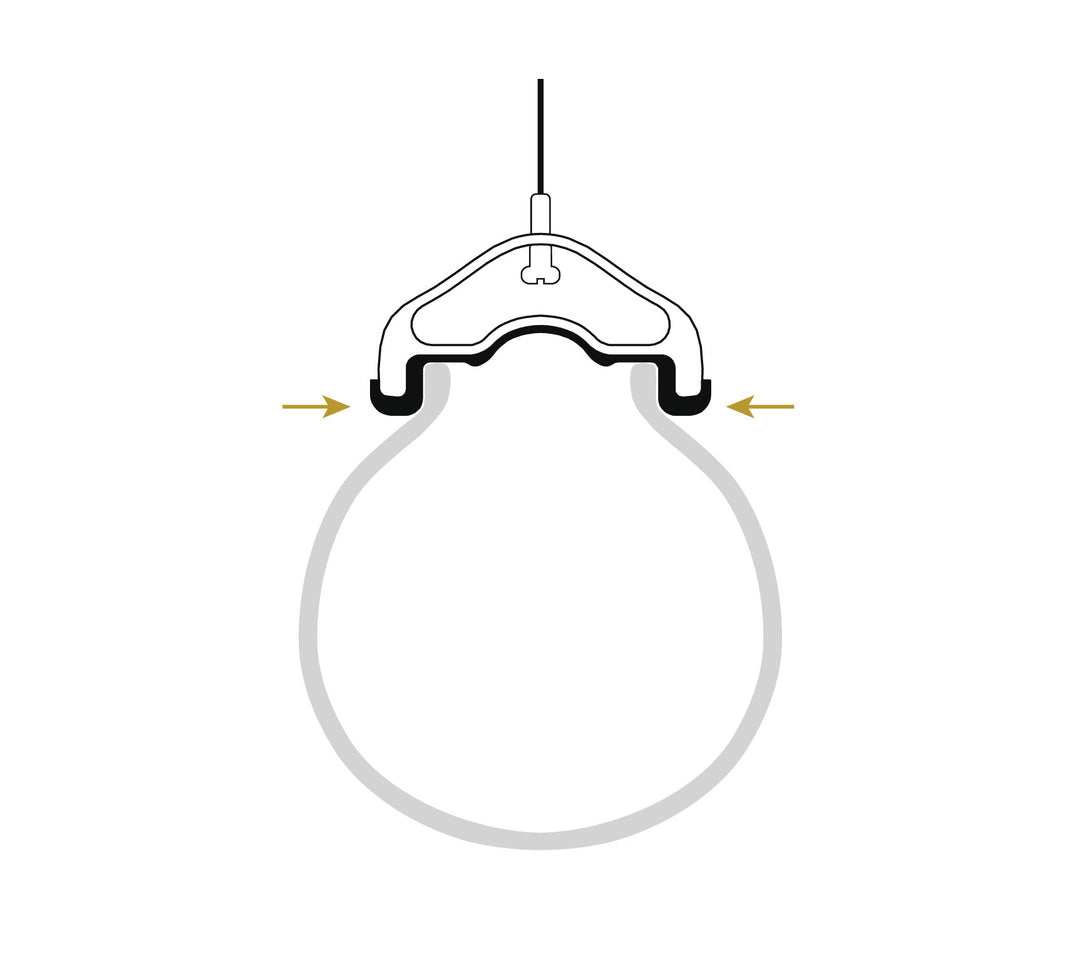

protective rim strip
Featured on the M9
- Enhanced Tubeless - The Protective Rim Strip also eliminates the need for rim tape, and provides added confidence that should a spoke break while riding, your tape will not be punctured and tubeless seal will remain intact
- Isolated Air Chamber - Should the rim be damaged, the Protective Rim Strip delivers and independent seal between tire and the rim, preventing air loss
- Eliminates the need for assistance from tire inserts to prevent pinch-flats, saving weight…
- These features make it the world's most successful wheelset in the World Cup today
- Ideal solution for gravity racing and E-MTB
“I was blown away by these things. We definitely dinged a couple alloy rims in our test group, but these ones held up through thick and thin. They were impressive. And they weren’t overly stiff either – that’s something people often critique about carbon wheels, and these were definitely more on the compliant side. I’ll give them a good shoutout for building strong, comfortable wheels.”
– Matt Beer, Pinkbike
E-MTB compatible
Shop e-mtb wheels
INNERDRIVE
WE'VE GOT YOUR BACK
5 YEAR FACTORY WARRANTY & INCIDENTAL DAMAGE PROTECTION
ENVE's mission is to create a better ride experience and we understand that the experience begins when you purchase what we all intend to be the best product you've ever ridden. While making the best product possible is our core purpose, we acknowledge that sometimes we will fall short. Other times, you'll come up short. Whatever the situation, we have a program to get you rolling on your favorite wheels as quickly as possible.
